Hodkin and Jones plaster arches are designed to be used with our range of pilasterscorbels and columns. Our largest plaster arch has a span of almost four metres and is ideal for wide entrance halls or to emphasise a specific area of the room. The smallest plaster arch within the range, with a span of just under one metre, can be used in place of - or above - any doorway, or as part of a series of plaster arches within a corridor.

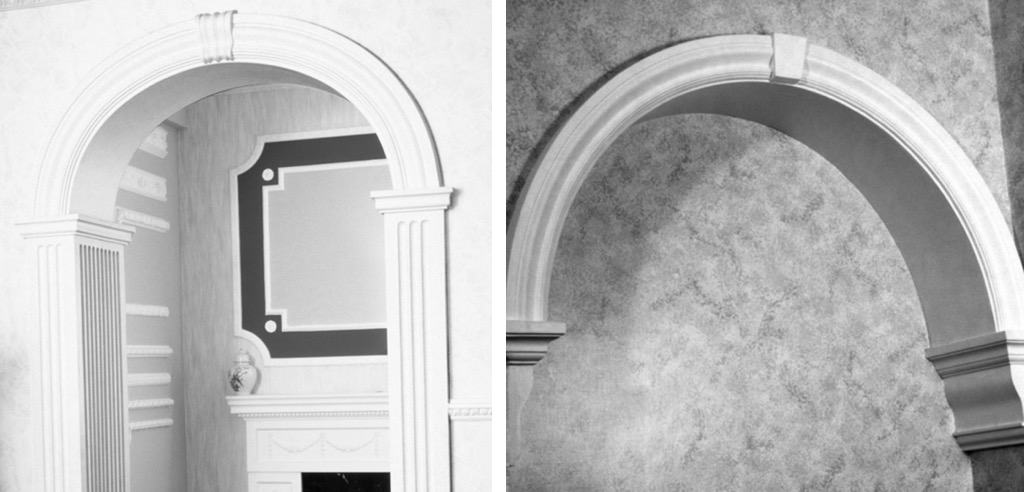

hodkin and jones plaster arches

All of our arches are made to order and are designed for a square opening, therefore if your application has an existing curve the arch will not be suitable. All arches come with an arch former, architrave and keystone. The architrave are available in two sizes - 75mm and 136mm, along with two size keystones to suit.

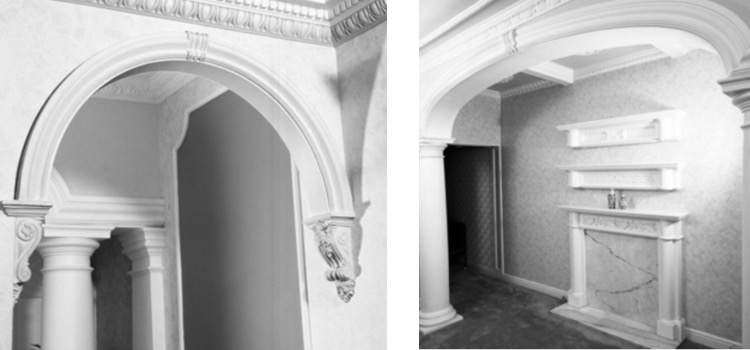

plaster corbelled arch and wide plaster arch

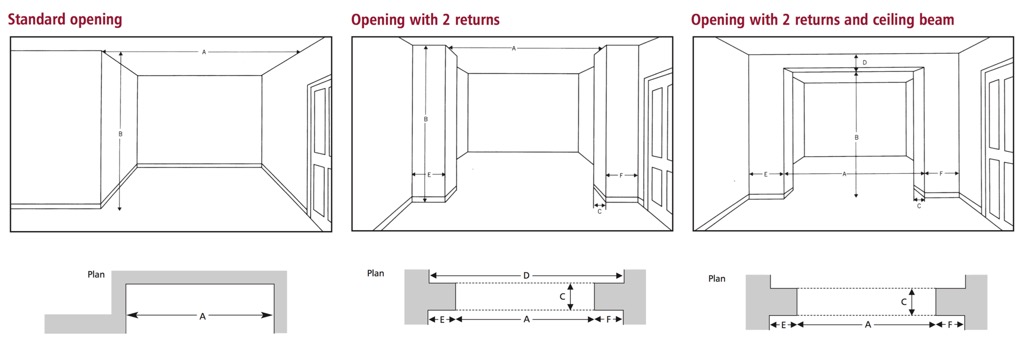

Typical Room Settings

Arches are generally installed into openings which fall into one of the 3 typical room settings. Choose which condition fulfils your requirements and note the relevant measurement details. Remember you can decide whether to use pilasters or corbels, but please make careful reference to the dimensions before ordering. In case of difficulty, please contact us on 01246 290890 for expert advice.

Arch Typical Room Settings

Please note: Arches are ordered by quoting the size of the final walk-through width (W) achieved after the arch is fitted. For example, if your gap from wall to wall (dimension ‘A’ on diagrams) measures 6’, you would need to order the 1524mm (5’) arch.

Please ring our sales office on 01246 290890 or email info@hodkin-jones.co.uk should you require any assistance when ordering.

Arch Range Dimensions

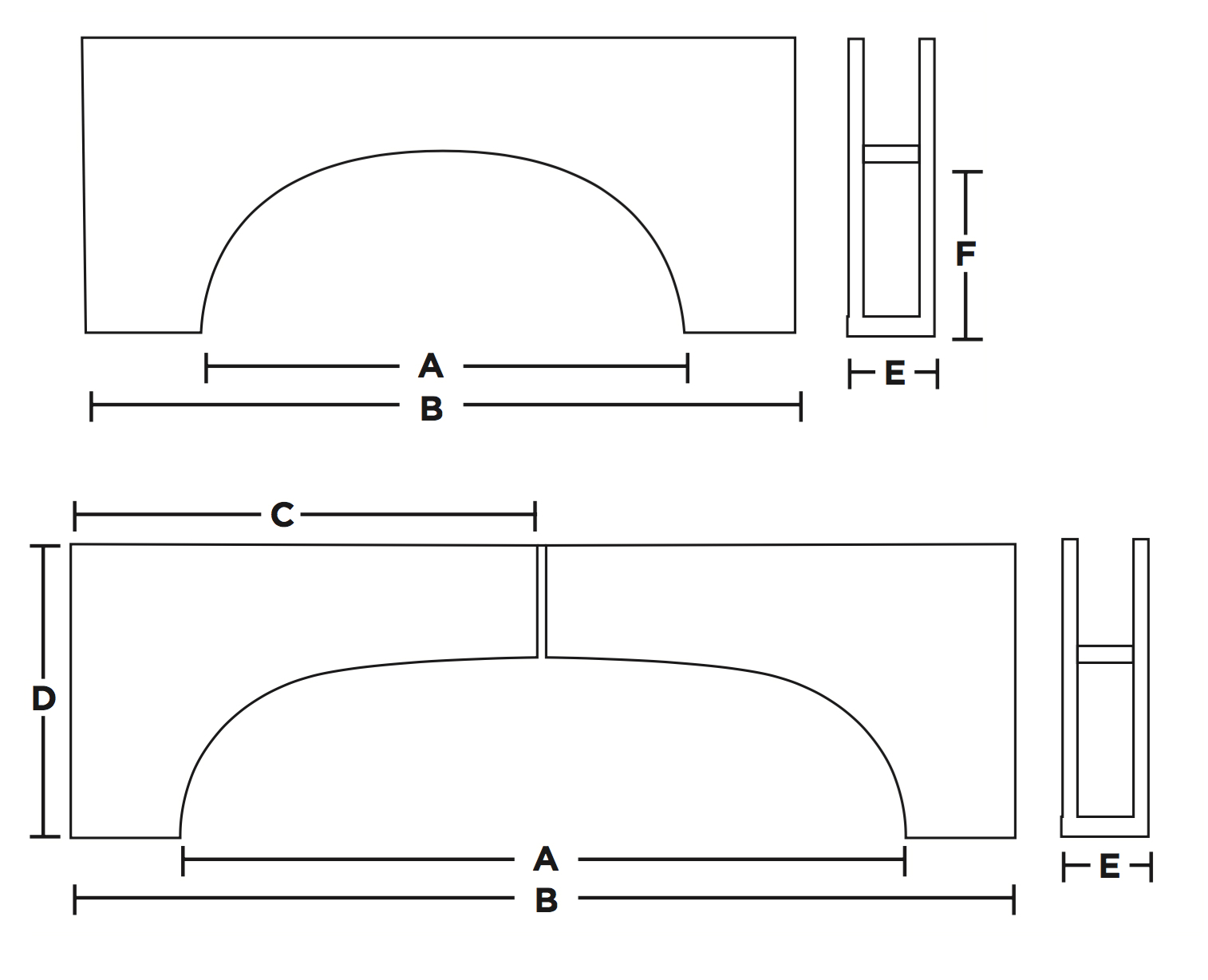

Arch Dimension Guide

A B C D E F
914mm Min. 964mm - Max. 1218mm N/A Min. 485mm - Max. 765mm Min. 100mm - Max. 300mm 457mm
1067mm Min. 1117mm - Max. 1371mm N/A Min. 485mm - Max. 765mm Min. 100mm - Max. 300mm 457mm
1219mm Min. 1269mm - Max. 1523mm N/A Min. 485mm - Max. 765mm Min. 100mm - Max. 300mm 457mm
1524mm Min. 1584mm - Max. 1828mm N/A Min. 485mm - Max. 765mm Min. 100mm - Max. 300mm 457mm
1829mm Min. 1879mm - Max. 2133mm 940mm Min. 485mm - Max. 765mm Min. 100mm - Max. 300mm 457mm
2438mm Min. 2488mm - Max. 2742mm 1244mm Min. 485mm - Max. 765mm Min. 100mm - Max. 300mm 457mm
3048mm Min. 3098mm - Max. 3352mm 1549mm Min. 485mm - Max. 765mm Min. 100mm - Max. 300mm 457mm
3658mm Min. 3708mm - Max. 3962mm 1854mm Min. 485mm - Max. 765mm Min. 100mm - Max. 300mm 457mm


If you have a project that requires the design, manufacture and installation of fibrous plaster arches please contact Hodkin and Jones on 01246 290890 or email info@hodkin-jones.co.uk
